Multibrand scanner Scanmatik 3 Maximum kit

Name: Multibrand scanner Scanmatik 3 Maximum kit
Brand: Scanmatik (Скансервис)
SKU: Scanmatik 3
Price: 783.9 USD
Availability: InStock

Brand: Scanmatik (Скансервис)
Product Code: Scanmatik 3
Availability: In Stock

$783.90

Reward Points: 390
Price in reward points: 39000

* Guarantee:
12 months from the manufacturer

0 reviews Write a review

Why do professionals
choose ECU Pro?

We have fast worldwide delivery by EMS-post

We provide a guarantee for products and technical support

Our system of discounts and regular promotions save your money

Description Instruction, drivers, soft Related Products (22) Write review

This professional multi-brand auto scanner is designed for diagnosing electronic control systems in modern vehicles. It works with a personal computer, tablet, or smartphone, and includes software for Windows and Android.

When installing the driver (included in the kit), it works with third-party diagnostic software made to SAE J2534 and RP1210 standards, as well as with bootloaders, supplying programming enable voltages to various contacts of the diagnostic connector.

To connect to the adapter, you can use either USB or Wi-Fi interfaces (built into the SM3 adapter)

All kits include the full current version of the program (all currently available software modules):

VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2.

Works with a large number of diagnostic programs and downloaders designed for the standard SAE J2534 and RP1210 interfaces.

Adapter Specifications SM3:

Interfaces for communication with a PC (tablet, smartphone) - USB or Wi-Fi
Power supply: 5...35 V from the vehicle's on-board network or USB (galvanically isolated with power supply)
Consumed current, no more than 350mA
The internal switching power supply units of its own design (no heating +wide range of input voltage from 5 to 55V)
Wi-Fi transceiver standard: IEEE 802.11b/g/n
Built-in multiplexer for switching the scan lines
The most extensive standards support J2534-1/2
Supply voltage programming (5-20V) - at the feet of the OBD2 connector: 6, 8, 11, 12, 13, 14
Output voltage programming the AUX (via optional cable)
Bluetooth operating range, min: 10m (Class 2)
Adapter sizes (l x W x h), not more 970х750х220мм
The weight of the device in the basic configuration, not more than 1 kg

Supported data bus:

13 x ISO-9141/ISO-14230 (K-LINE)
1 x J1850VPW
1 x J1850PWM
4 x CAN 2.0/CAN-FD
1 x Single Wire CAN
1 x Ethernet 10/100BASE-TX

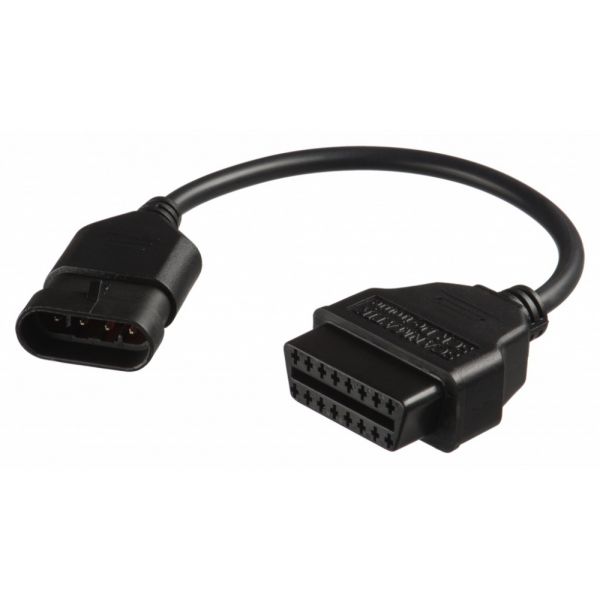

The composition of the Maximum kit:

adapter Scanmatik 3
Cabel OBD2 + AUX (1 m)

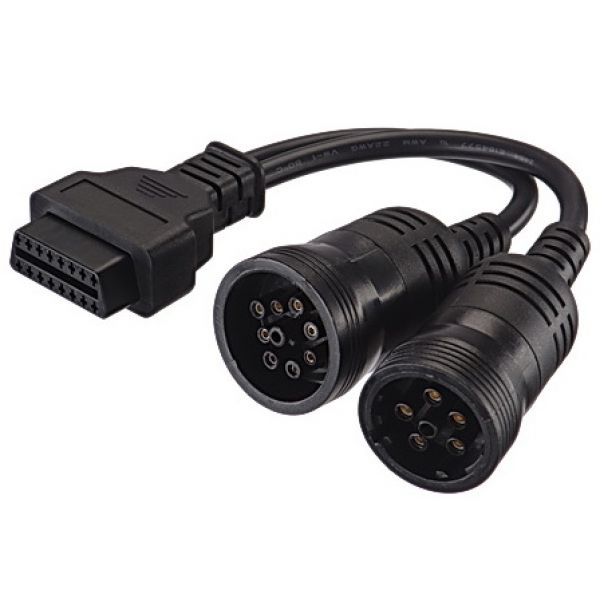

Deutsch 6+9
Benz-14
ISO-16
GAZ Westport XCP
SCR-MGS
cable sm3.lighter for the cigarette lighter
Cabel USB

Differences SM3 from SM2-Pro

Options	SM3	SM2-PRO
Supply voltage	5-35V	5-35V
Operation with a 24V on-board network	Yes	Yes
ISO-9141/ISO-14230 (K-LINE)	13 dial-up lines	13 dial-up lines
J1850 VPW/PWM	Yes	Yes
SCI (programm. Chrysler до ~05г)	Yes	Yes
CAN FD	5	No
CAN 2.0	5	4
SW CAN	1	1
Ethernet 10/100BASE-TX (DoIP)	Yes	Yes
Programming voltage 5-20В (J2534)	Yes, on pins 6, 8, 9, 11, 12, 13, 14 of the OBD2 connector	Yes, on pins 6, 8, 9, 11, 12, 13, 14 of the OBD2 connector
Programming voltage (AUX)	Yes,cable included	Yes (via additional cable)
Short circuit K lines to ground	Yes	Yes
Security system K и CAN line	Yes	Yes
Power adapter	Built-in software-controlled pulsed power supply of our own design	Built-in software-controlled pulsed power supply of our own design
USB data transfer rate	up to 480 Mbit/s	up to 12 Mbit/s
USB port protection	Galvanic isolation of the USB port (including power supply)	Galvanic isolation of the USB port (including power supply)
Wireless connection type	Wi-Fi IEEE 802.11 b/g/n	Bluetooth
Frame	Translucent, with latches and screws, extra thick with additional stiffening ribs inside	Translucent, with latches and screws, extra thick with additional stiffening ribs inside
