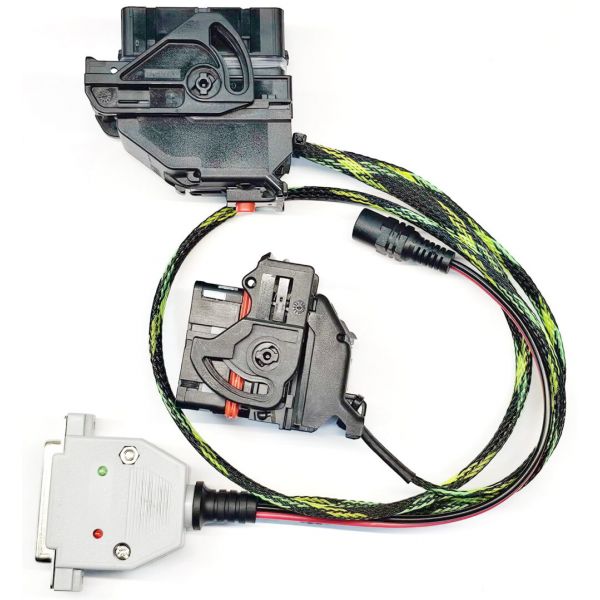

MT62.1/MT63.2 cable for Scanmatic 3

MT62.1/MT63.2-Scanmatic 3 cable for programming Delphi MT62.1/MT63.2 China ECUs.

For ease of use, the cable has a mode switch:

• Reading and Indetification
• Writing and Identification
• also writing to work with ECU Delphi MT62.3 from Cherry PHEV

If you are working with regular MT62.1/MT63.2 units, you do not need to connect the small connector cable!

The cable also allows you to work with 51 PCMFlash bootloader modules.

The connection is made directly to the Scanmatic 3/2/2PRO.

List of supported cars (see below):

Changan 1.5L (Delphi MT62.1)

Chery 1.5T PHEV (Delphi MT62.3) [Test]
Dongfeng/Fengon 2.0L (Delphi MT62/MT62.1)
Dongfeng/Fengon 1.5T (Delphi MT62.3)
Dongfeng/Fengxing 2.0L (Delphi MT62.1)
Dongfeng/Fengshen 1.5T (Delphi MT62.1U)
Dongfeng/Fengshen 1.5T (Delphi MT62.3)
Dongfeng/Nazhijie 1.8T (Delphi MT62.1)
Dongfeng/Oting 2.4L (Delphi MT62.1U)
Great Wall 2.4L (Delphi MT62.1U)
Huanghai 2.4T (Delphi MT62.1)
JAC 1.5T (Delphi MT62.1)
Southeast 1.5T (Delphi MT62.1)
Zotye 2.0T (Delphi MT62.1)
BAIC 2.0T (Delphi MT62.1)
Chery 1.6L (Delphi MT62.1)
Dayun 2.4T 4K22D4T (Delphi MT62.1U)
Foton 2.4L (Delphi MT62.1U)
Chery 1.5T PHEV (Delphi MT62.3)
BAIC 2.4T 4K22D4T (Delphi MT62.1U)
Jinbei 2.0L 1TZS (Delphi MT62.1)
Jinbei 1.6L SWDC16M (Delphi MT62.1U)
Junma/Traum 1.5T SFG15T (Delphi MT62.1)
SAIC 2.0L 1TZH (Delphi MT62.3)
Changfeng 2.0T (Delphi MT62.1)
Chery 1.6L E4G16C CNG (Delphi MT62.3)
Chery 1.5T E4T15C PHEV (Delphi MT62.3)
Nanjun 1.5L DK15C (Delphi MT62.1)
Dongfeng/Fengshen 1.5T (Delphi MT62.1)
Isuzu 2.0T 4K21D4T (Delphi MT62.1G)
