Stand Launch CNC 603A ULTRASONIC washing for 6 injectors

Brand: Launch
Product Code: LA32003
Availability: In Stock
623
Reward Points: 300
Why do professionals
choose ECU Pro?
We have fast worldwide delivery by EMS-postWe have fast worldwide delivery by EMS-post
We provide a guarantee for products and technical supportWe provide a guarantee for products and technical support
Our system of discounts and regular promotions save your moneyOur system of discounts and regular promotions save your money
In July 2020, LAUNCH updated its CNC-603A injector testing and ultrasonic cleaning bench.
CNC-603A 2.0 is an improved modification of the previous version, which has been modified taking into account all the design and technical comments of users.
The bench is suitable for working with a wide range of gasoline injectors of various types, both top and side feed, but it is not intended for testing diesel injectors.

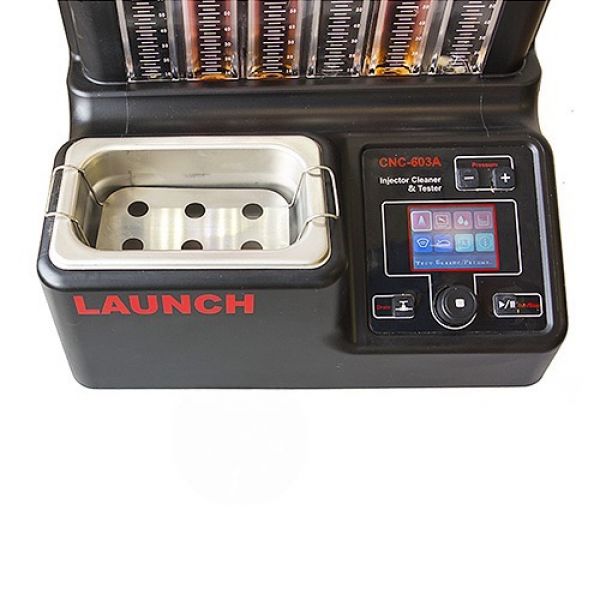

Constructive 2-in-1: built-in quick-detachable ultrasonic bath saves working space.
New front panel: waterproof design, color digital display, multifunctional rotary knob for menu navigation, analog pressure gauge.

Capabilities:
  • Test and clean up to six injectors simultaneously
  • Modeling the real parameters of the engine in accordance with the features of a specific engine control system
  • Simulation of various dynamic modes of engine operation
  • The design of the fuel rail allows you to work with various types of injectors - both with top and side fuel supply
  • Automatic current control depending on the specific winding resistance, no need to set the operating voltage of the injector (3 / 12V)

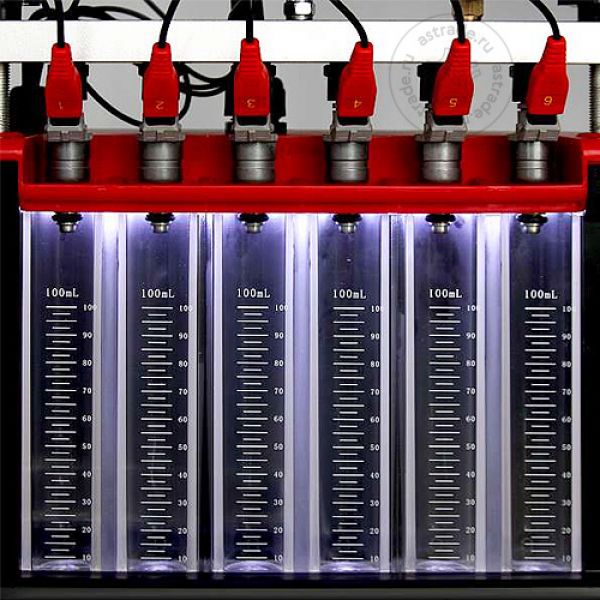

  • Fluorescent illumination of volumetric flasks - additional convenience for evaluating test results
  • Automated drainage of the test fluid into the storage tank at the push of a single Drain button
  • Adapters for testing most mechanical and electromagnetic top feed injectors in the basic kit
Features:
  • Designed for testing and cleaning passenger car injectors
  • Integral 2-in-1 solution:
  • Main unit with 6 volumetric flasks made of impact-resistant glass
  • Quick-detachable ultrasonic bath
  • All the functions of the CNC-602A in a more modern and lightweight design
  • Original LAUNCH style, new control panel, quality materials and components
Specifications:
  • Power supply ~ 220-230 V, 50/60 Hz, 1.5A max
  • Power consumption 300 W
  • The power of the ultrasonic radiator of the bath is 100 W
  • Test fluid pressure 0 - 0.65 MPa
  • Pressure setting accuracy 0.004 MPa
  • Speed ​​range 10 - 9990 rpm
  • Speed ​​setting accuracy 10 rpm
  • Frequency range (number of pulses incl. Injectors) 1 - 9999 1 / s
  • The duration of the impulse for switching on the injectors is 0.5 - 25 ms
  • Dimensions 396 x 380 x 446 mm
  • Weight 12 kg
