Launch X431 PRO-3 HD v5 SE SmartLink (2022)

The Launch X431 PRO-3 HD v5 SE SmartLink autoscanner from Launch 2022 with functionality for diagnostics of commercial and cargo transport.



Launch X-431 PRO3 HD v. 5.0 SE (Version 2022) is an updated version of the most versatile solution for commercial vehicle diagnostics, Launch X-431 PRO3 HD v. 4.0 (Version 2020), specialized for professional operation of multi-stop service stations and large fleets. The functionality of the scanner provides the service station with everything necessary for the diagnosis, maintenance and repair of commercial vehicles.

In addition to the basic functionality, scanners support functional tests, adaptations, activations, and other special functions.



• A full range of software solutions for truck diagnostics and diagnostics of all systems in a truck;
• Diagnostic software with the widest coverage by make and model of vehicles;
• High speed display of current parameters;
• The software is constantly being updated and improved, due to which the latest functional solutions for commercial vehicle diagnostics are always provided to users.;
• Diagnostics of trucks with diesel engines with 12 V or 24 V batteries;
• The device's firmware is designed in full compliance with international standards, which ensures full compatibility of the diagnostic interface with a wide range of models from various manufacturers.;

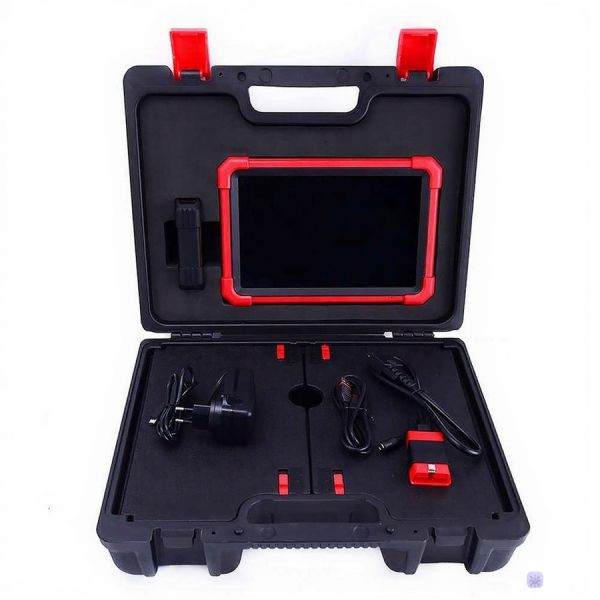

• A complete set of necessary adapters and cables for commercial vehicle models from different manufacturers.

• A hardware and software platform with a 4-core processor (operating frequency 2.0 GHz), characterized by high performance and minimal time required for diagnostics;

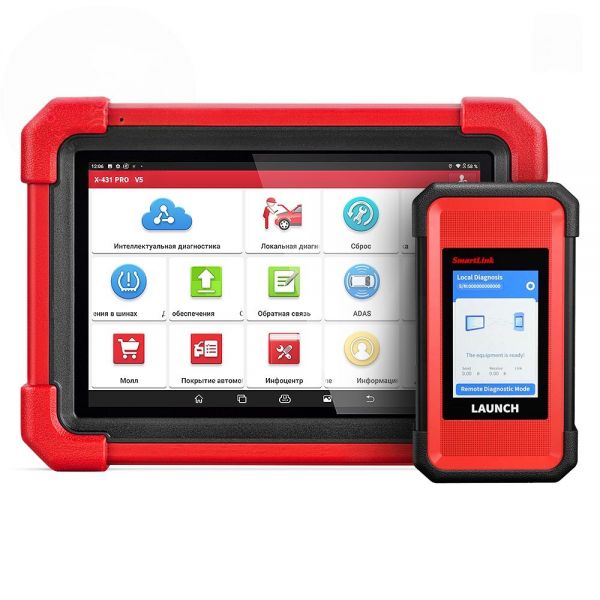

• A tablet with a fully functional modern operating system, on which it is possible to install many different work applications, as well as transfer, display and save data in real time.;
• Wireless connection to the diagnostic interface of the car is carried out using a Bluetooth adapter.;
• Built-in Wi-Fi allows you to quickly and easily register your device online, download software updates, and receive information and technical support.;
• The simplest and most user-friendly interface with a high degree of Russification;
• Specialization directly for working with trucks;
• The option to print the results of diagnostic procedures (optional Wi-Fi printer is available separately).

• Operating System: Android 10
• Processor: 4-core 2.0 GHz, Quad-core
• LCD display: 10.1 inch touch screen
• RAM: 4 GB
• Internal memory: 64GB
• Camera: Rear Camera, 8 MP
• Interface: Wi-Fi (802.11 a/b/g/h), Bluetooth/USB
• Battery: 6300 mAh
• Dimensions (LxWxH): 274 x 190.5 x 40.5 mm
• Package dimensions 508 x 185 x 350 mm + 436 x 136 x 372 mm
• Package weight 4.2 kg + 4.5 kg
• Operating voltage: 9-36V
